Eighteeth NanoPix 1.5 Intraoral X-ray sensor

NanoPix 1.5: Smart Size, AI-Powered Intraoral Digital Imaging Sensor

  1. Built-in AI Technology (Nano AI): The first AI diagnostic system built into a sensor. Automatically detects 4 structures (enamel, dentin, pulp, bone level) and 10 diseases, and identifies tooth position. This significantly improves diagnostic speed and increases case acceptance by the patient.
  2. Smart Size and Improved Design: A 24mm effective imaging size provides full tooth visibility. An ultra-thin curved design (4.4mm) with comfortable rounded corners minimizes the patient’s sensation of foreign objects and enhances comfort.
  3. Superior Image Quality and High Durability: Thanks to APS CMOS technology and 25lp/mm (theoretical) resolution, it captures high-resolution, low-noise images. A robust design (passed 70,000+ bend tests) and long lifespan (50,000+ exposures) ensure reliable performance.
صور المعرض
صور المعرض
صور المعرض
صور المعرض
صور المعرض
صور المعرض
صور المعرض
صور المعرض

Buy with Confidence with:

  • Professional installation and training.
  • Diverse models with modern specifications.
  • Comprehensive educational support on device usage.
  • A skilled and responsive maintenance team.
  • Guaranteed availability of spare parts.

Device Purchase Stages:

  • Pre-sale experience (Demo)
  • Fast and immediate supply
  • Professional staff training
  • Immediate technical support and continuous communication
  • Periodic software updates

Product Description

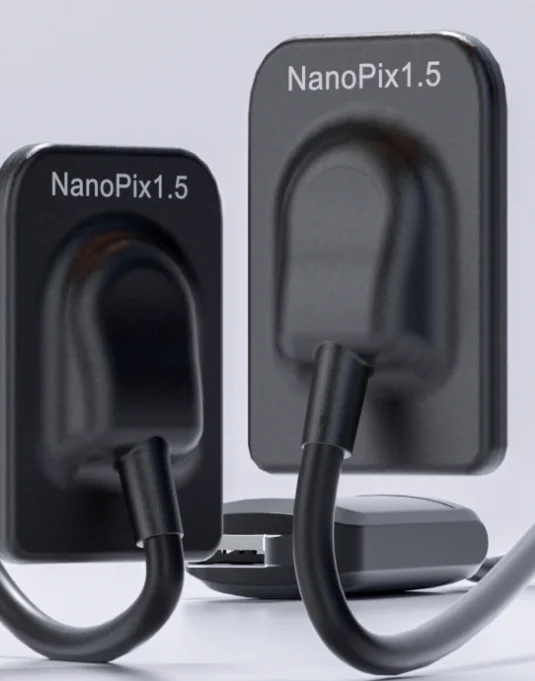

Meet NanoPix 1.5

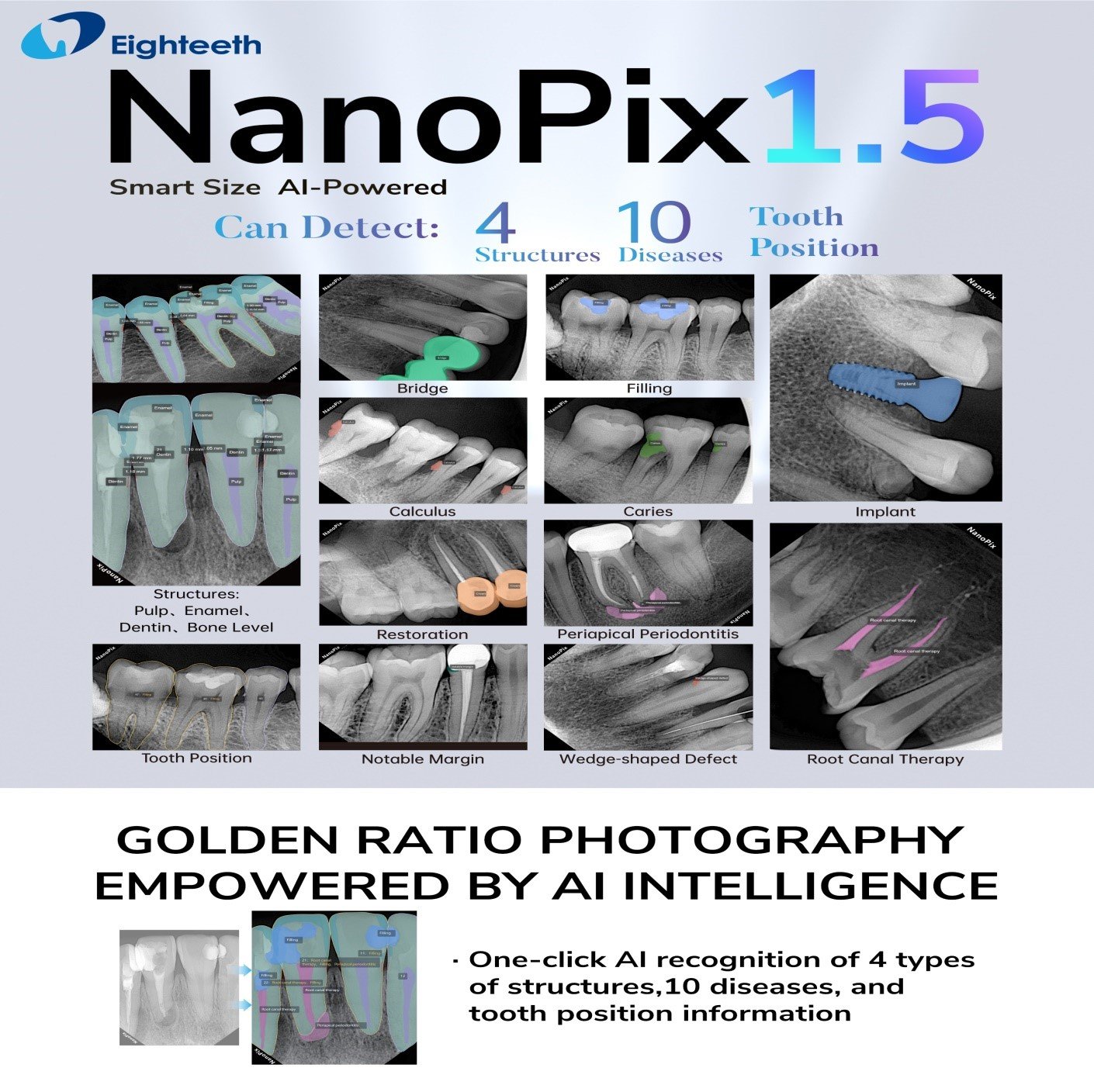

Powerful Nano AI in NanoPix 1.5: Features and Capabilities

  • 1. Introduction:
    • Nano AI: The first AI diagnostic system built into an X-ray sensor.
    • Tool: A tool for patient education and increasing treatment plan acceptance.
  • 2. Detection Capabilities (Can Detect):
    • Number of 4 Structures:
    - Pulp
    - Enamel
    - Dentin
    - Bone Level
    • Number of 10 Diseases:
    - Caries - Periapical Periodontitis
    - Root Canal Therapy
    - Filling
    - Restoration
    - Implant
    - Bridge
    - Calculus
    - Wedge
    - shaped Defect
    - Notable Margin
    • Tooth Position
  • 3. X-ray Image Comparison:
    • Without Nano AI: Traditional X-ray image.
    • With Nano AI: X-ray image with clear highlighting and identification of structures and diseases by AI.
  • 4. Visual Diagnostic Reports:
    • Purpose: To improve patient consultations and increase their satisfaction.
    • Benefit: Facilitates explaining the condition to the patient and increasing their acceptance of treatment.
  • 5. Impact on the Clinic:
    • Increased Case Acceptance: 27% increase (Source: Internal Study).
    • Increased Clinic Revenue: 35% increase (Source: Internal Study) due to improved diagnostic speed.

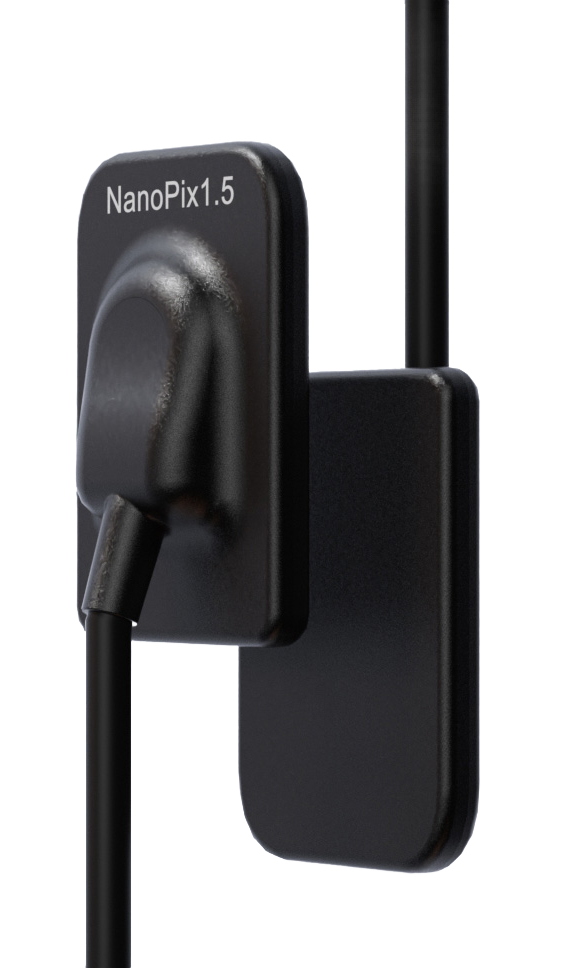

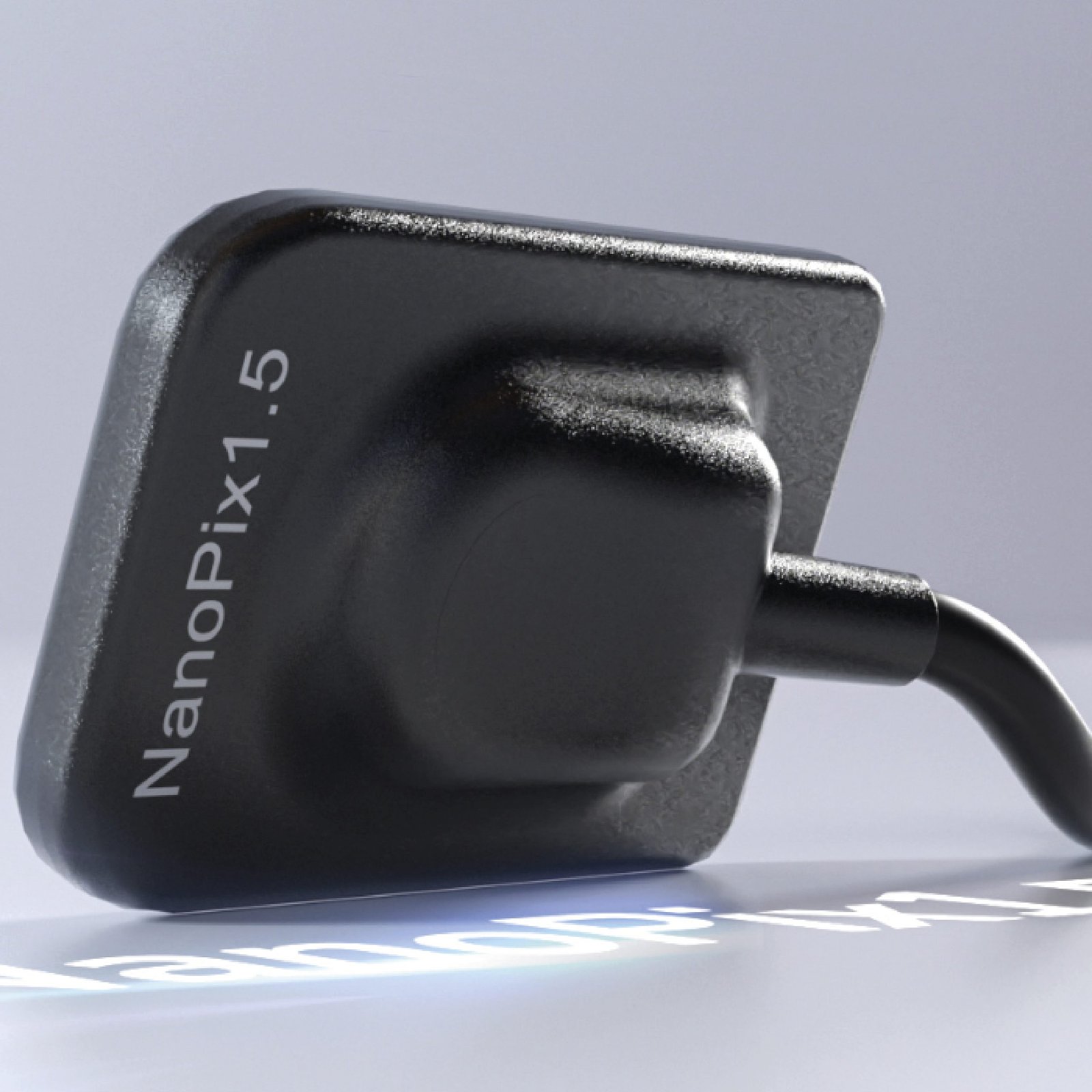

NanoPix 1.5: Smartly Sized, Perfectly Priced, Advanced Design

  • 1. Dimensions and Sizing:
    • Effective Image Width: 24mm.
    - Visibility: Provides full tooth visibility.
    • Thickness: 4.4mm.
    - Ultra-thin Curved Design:
    a) Fits the curvature of the finger for easier positioning.
    b) Ultra-thin design to reduce the sensation of foreign objects in the patient's mouth
  • 2. Improved Design:
    • Ergonomic Rounded Corners:
    - Reduced pain sensation.
    - Improved patient comfort.
    • Placement illustration: the image illustrate how to place the sensor inside the mouth
  • 3. Protection Class (IP68):
    • Water and Dust Resistance: Repels water and dirt.

Core Technologies in NanoPix 1.5: Precision, Efficiency, and Safety

  • 1. Stable AED Technology:
    • Efficient diagnosis and treatment.
    • 3-second ultra-fast imaging, instant capture.
    • Automatic exposure detection, compatible with common AC and DC X-ray equipment.
  • 2. Precise Imaging:
    • High Sensitivity APS CMOS Sensor.
    • Acquiring low-noise, high-resolution images for a precise diagnosis becomes easy.
    • Low power consumption and long life.
  • 3. Protecting Health:
    • Direct distillation technology for cesium iodide.
    • Low-dose capture of high-definition images reduces the need for extensive radiography experience, making imaging safer.
  • 4. Resolution:
    • 25lp/mm (theoretical) resolution.
    • With 20µm pixel for detailed image performance.

Video about the product

Frequently asked questions(FAQ)

Answers to your questions and inquiries about the product

What is the NanoPix series?

The NanoPix series is a set of advanced intraoral digital x-ray sensors used in dentistry to capture high-quality images of teeth and jaws. The NanoPix 1.5 features built-in AI technology.

The NanoPix series features a unique design:

Ergonomic: Concave cable connection in (NanoPix 1.0/2.0) and curved design in (NanoPix 1.5) for comfortable finger placement.

Durable: Strong cable that has passed more than 70,000 times bending test.

Ultra-thin: 4.4mm thick, making it comfortable for the patient.

Rounded corners in (NanoPix 1.5): For better patient comfort.

Size: NanoPix 1.5 has a larger effective imaging area but is thinner, allowing more teeth to be imaged and providing greater patient comfort.

  • Image Quality: NanoPix 1.5 has better resolution stability, resulting in clearer images.
  • Water Resistance: NanoPix 1.5 has a higher water and dust resistance rating (IP68).
  • Artificial Intelligence: NanoPix 1.5 features built-in Nano AI technology, while NanoPix 1.3 does not (but software can be upgraded to get it).

Yes, thanks to AED technology, the NanoPix series is compatible with most DC and AC X-ray generators.

NanoPix is ​​much less expensive than conventional film.

The NanoPix series has a long lifespan, with a lifetime of over 50,000 exposures without loss of image quality.

Yes, the NanoPix series integrates seamlessly with the DR Pad and its base (sold separately).

The NanoPix software is easy to use and includes 4 simple steps: patient selection, image acquisition, image display, and report generation. It features easy installation, a friendly user interface, and advanced image processing options.

CPU ≥ 1.0GHz, RAM ≥ 2GB, HDD ≥ 64GB, Screen ≥ 1024 x 768, USB ≥ USB 2.0, OS: Windows 7/8/10 32-bit/64-bit.

 No, currently only compatible with Windows systems.

No, Nano AI is specifically designed to work with NanoPix sensors. It may be possible to use NanoPix sensor with other software if they are compatible with Twain Check the compatibility list.

Yes, it supports data sharing and image display. You may need an engineer for remote support. Note: Some functions may not be available after updating the AI ​​function in some versions.

Nano AI is an AI diagnostic system built into the NanoPix 1.5 sensor (and available as an update for some older versions). It can detect 4 dental structures (pulp, enamel, dentin, bone level) and 10 diseases, and pinpoint the position of the tooth.

Existing and new NanoPix 1.0/2.0 and NanoPix-E 1.3 customers can get the AI ​​diagnosis function by upgrading the software. NanoPix 1.5 comes with Nano AI as standard.

Nano AI diagnosis accuracy is about 93%. Nano AI is intended to assist dentists in explaining the condition to patients and improving treatment acceptance, not to replace the doctor’s judgment.

Yes, Nano AI is free for NanoPix users.

No, Nano AI is built into NanoPix devices and is not sold separately
