Product description
Key Functions & Applications
- T1/TD1 - Calcification & Cement Removal, Broken File Extraction
- Removes calcifications in root canals for better cleaning and shaping. Efficiently eliminates cement and aids in broken file removal with high precision. T2/TD2 - Active Irrigation & Irrigation Activation
- Enhances root canal disinfection with active irrigation. Improves penetration of irrigants for optimal debris removal and cleaning. T3/TD3 - Access Opening, Canal Orifice Detection & Crown/Post Loosening
- Facilitates accurate access refinement while preserving tooth structure. Aids in detecting canal orifices and removing calcifications. Assists in loosening crowns and posts efficiently. T4/TD4 - Pulp Stone & Base Material Removal, Pulp Chamber Cleaning
- Removes pulp stones and residual base materials for a clean pulp chamber. Ensures thorough chamber disinfection before further treatment. T5/TD5 - Fiber Post Removal (Coronal) & Coronal Calcification Removal
- Safely extracts fiber posts from the coronal third without damaging the tooth. Effectively clears coronal calcifications for better root canal shaping. T6/TD6 - Broken File & Fiber Post Removal (Apically)
Specially designed for removing broken files and fiber posts from apical areas.
Navigates intricate canal spaces with precision and safety.

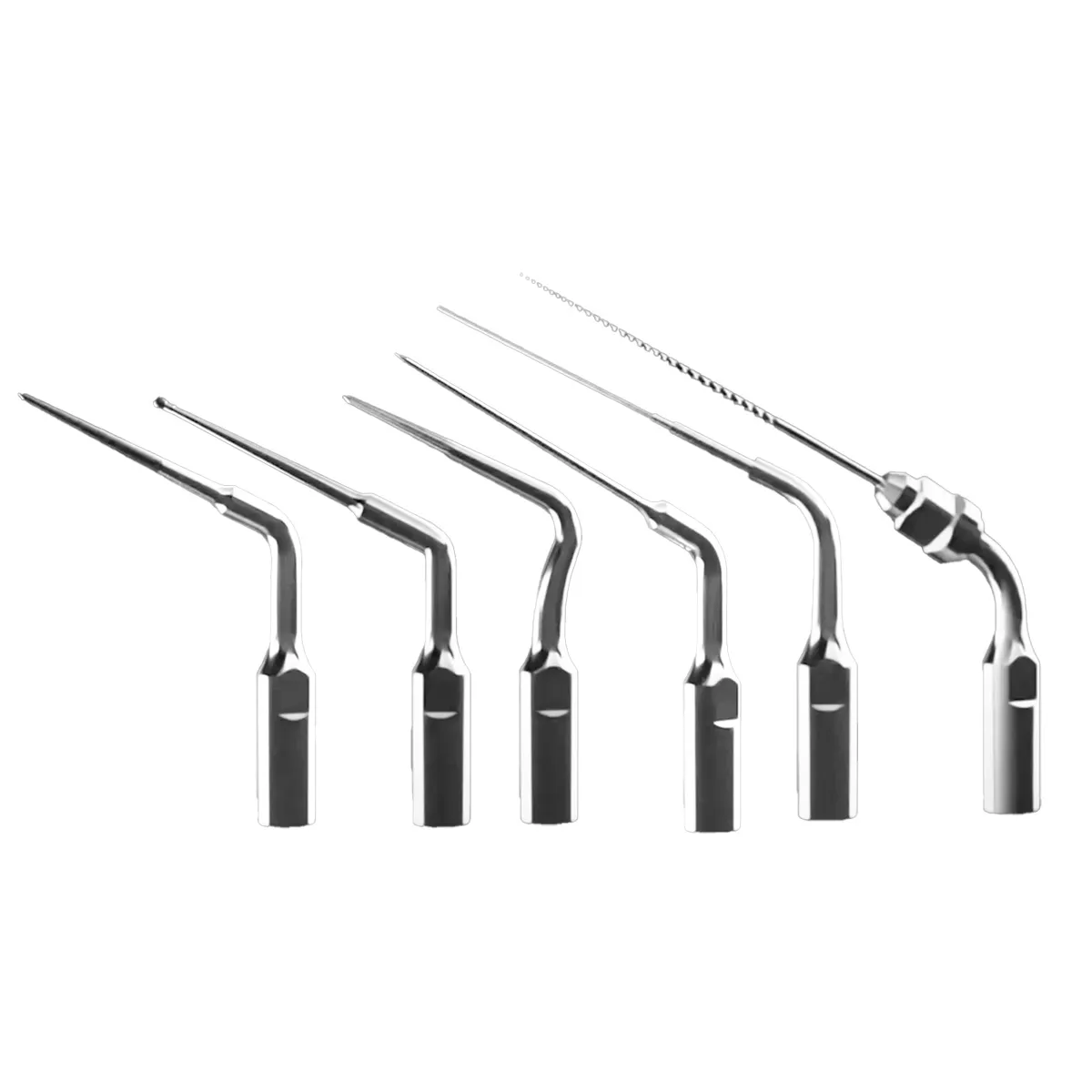

Kit Specifications

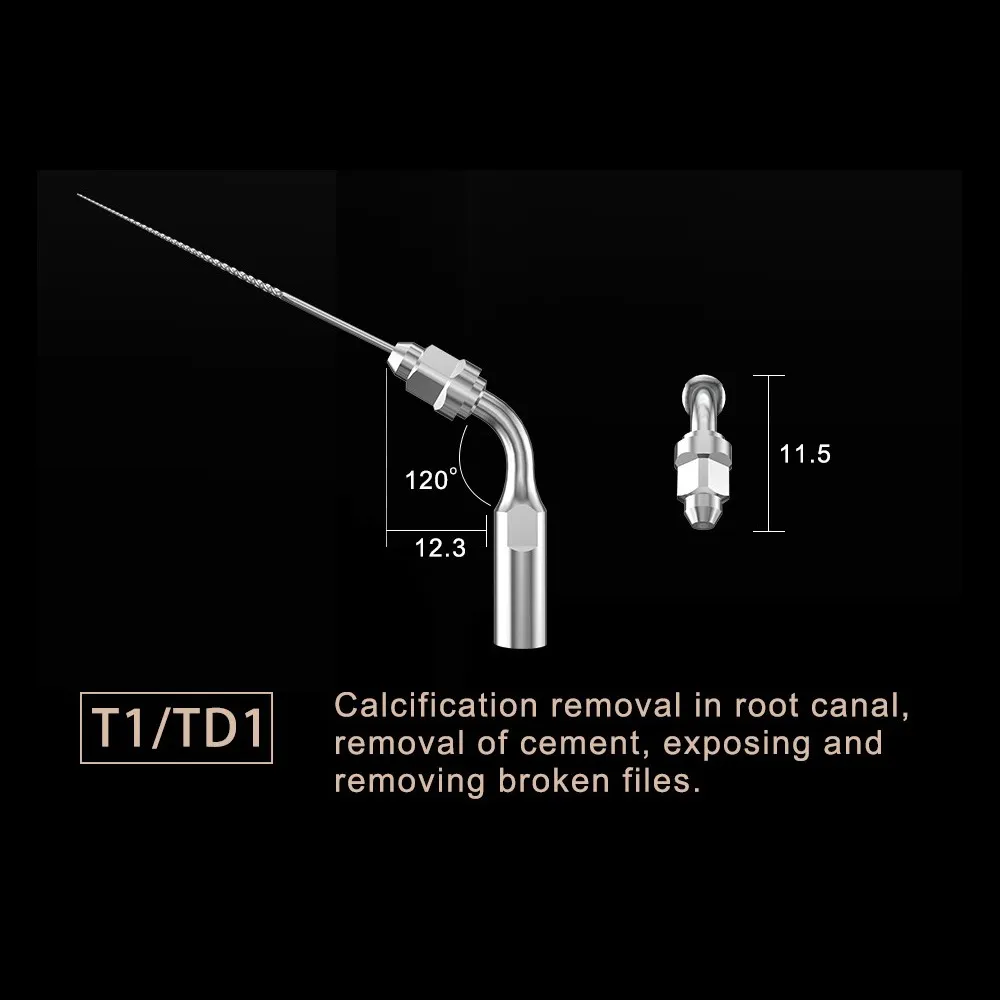

- T1/TD1: 120° Angle Holder
- T2/TD2: 21mm Tip Length, 0.3mm Diameter

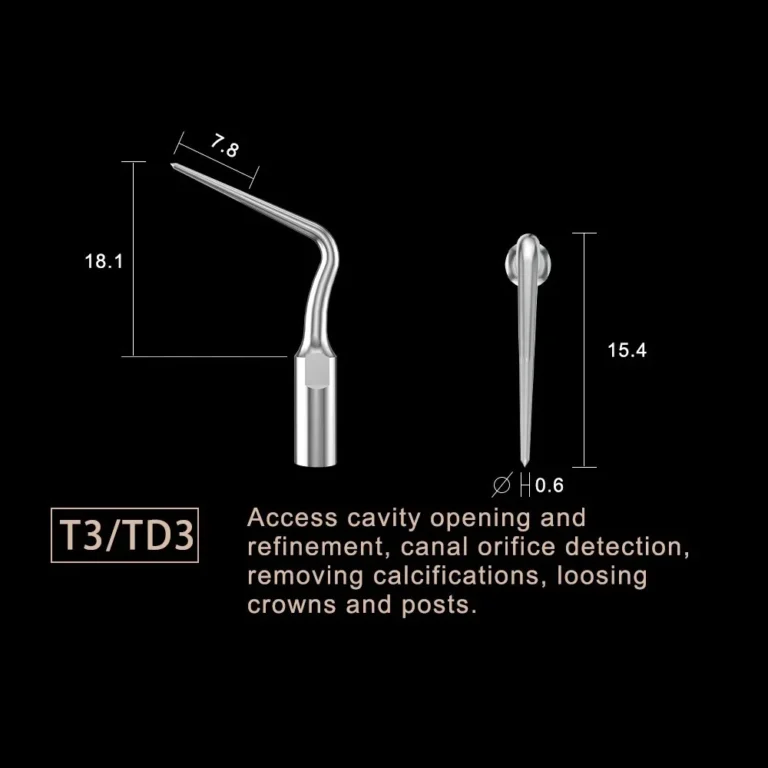

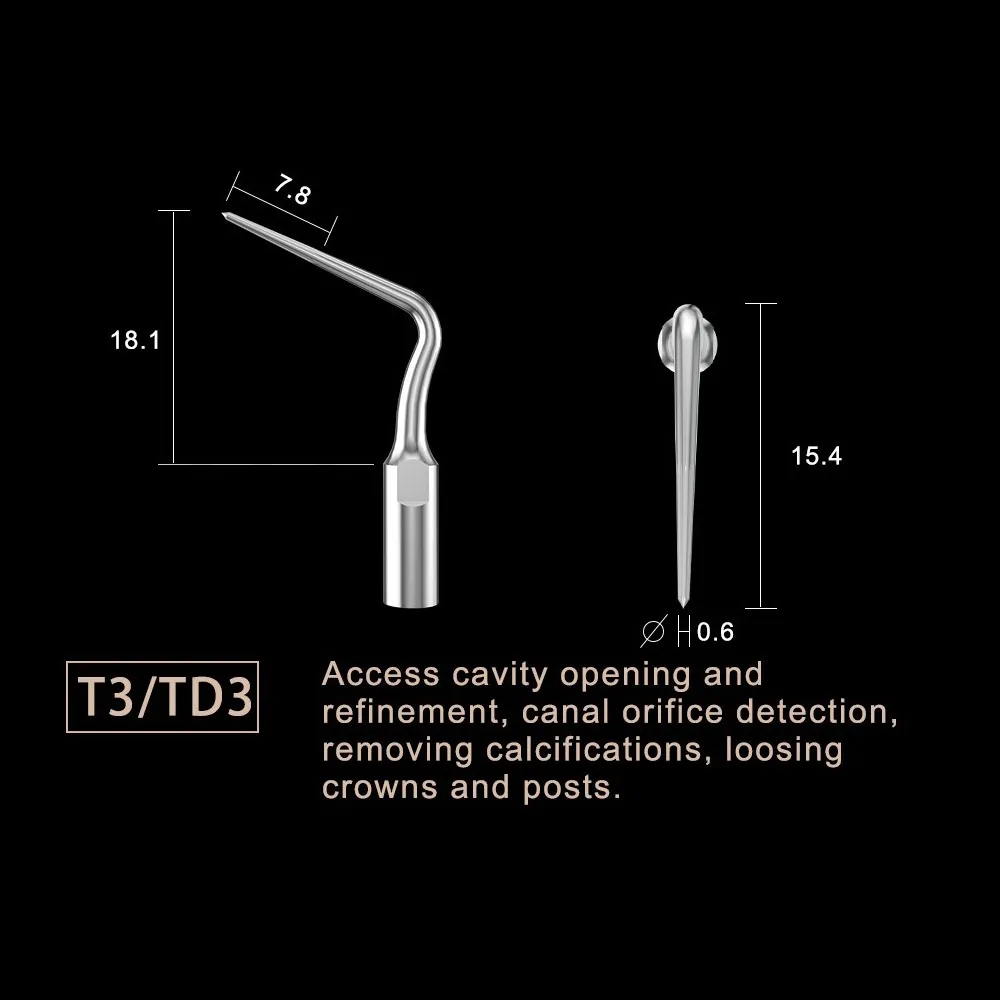

- T3/TD3: 15.4mm Tip Length, 0.6mm Diameter
- T4/TD4: 18.9mm Tip Length, 0.9mm Diameter

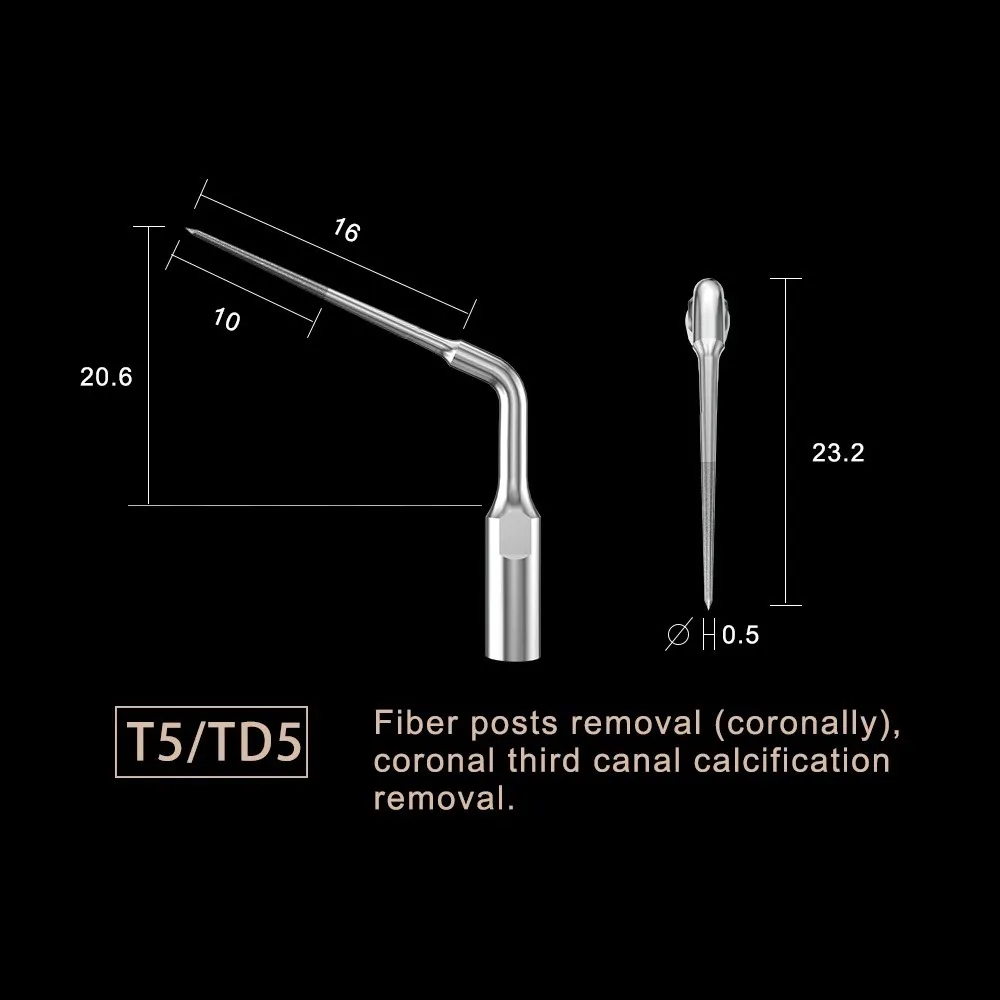

- T5/TD5: 16mm Tip Length, 0.5mm Diameter

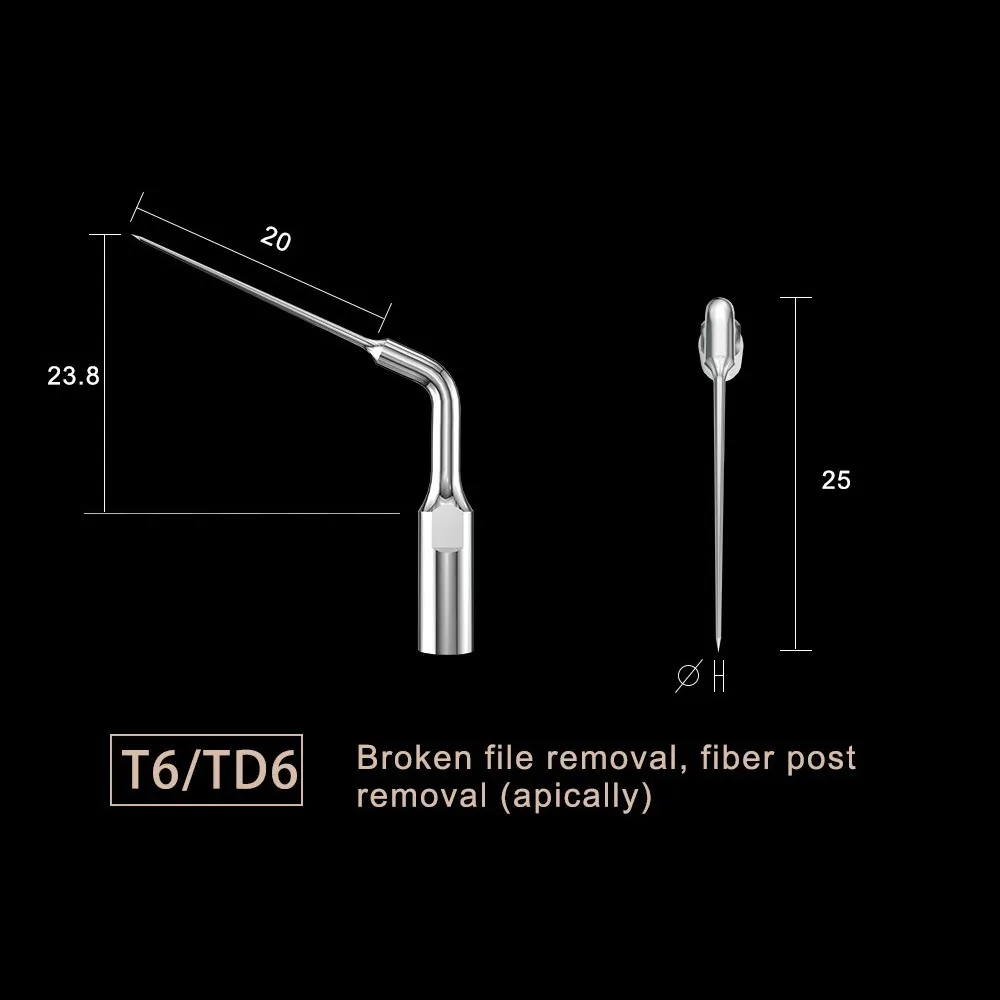

- T6/TD6: 20mm Tip Length

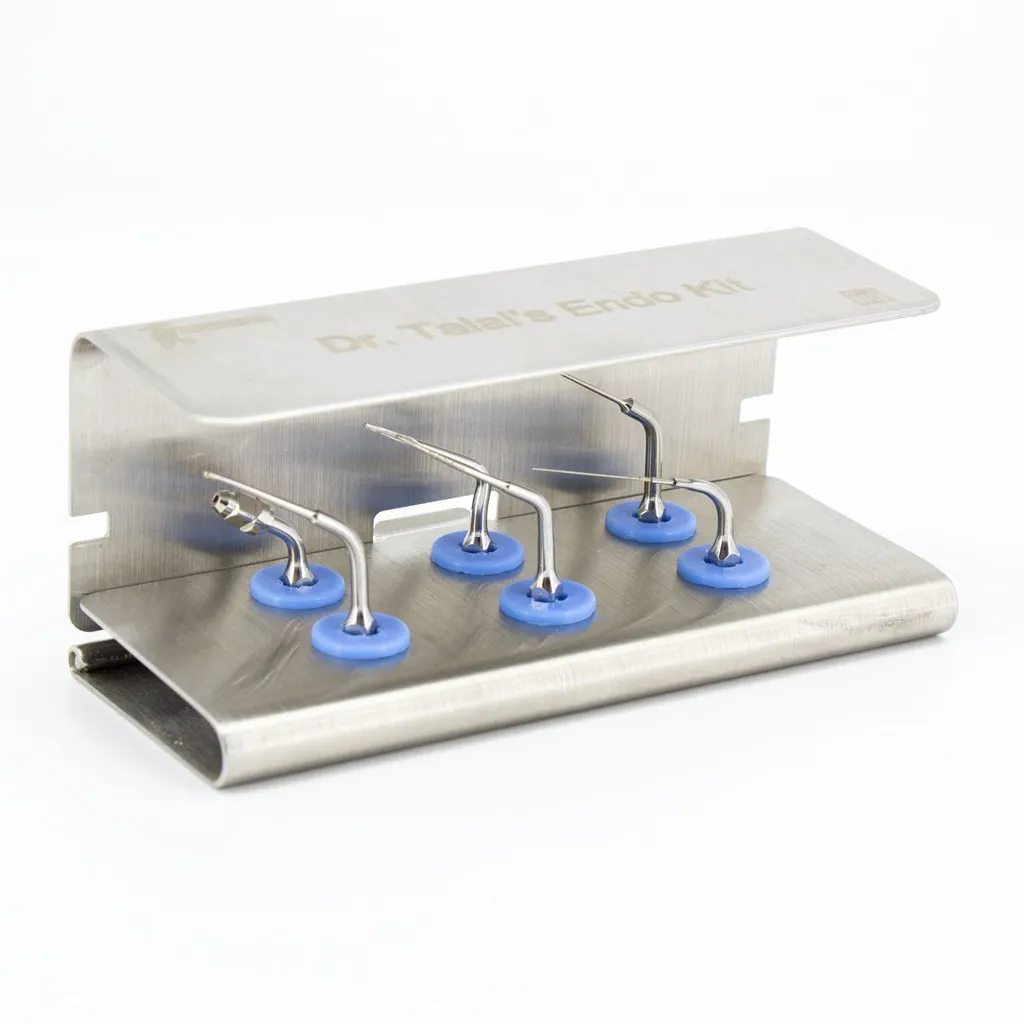

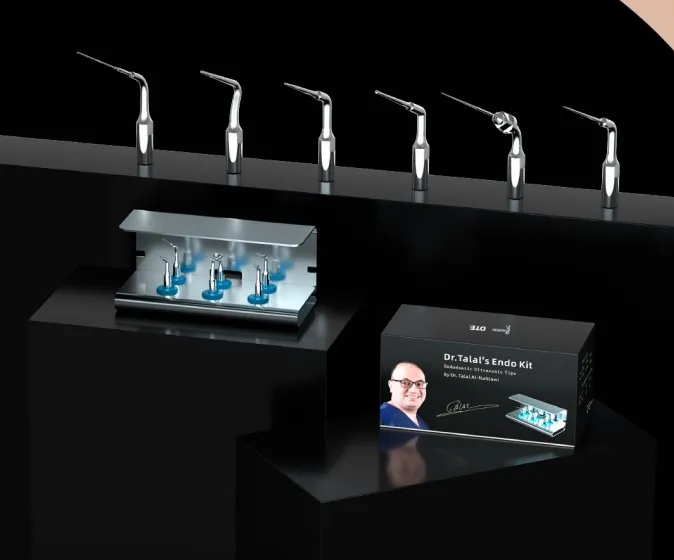

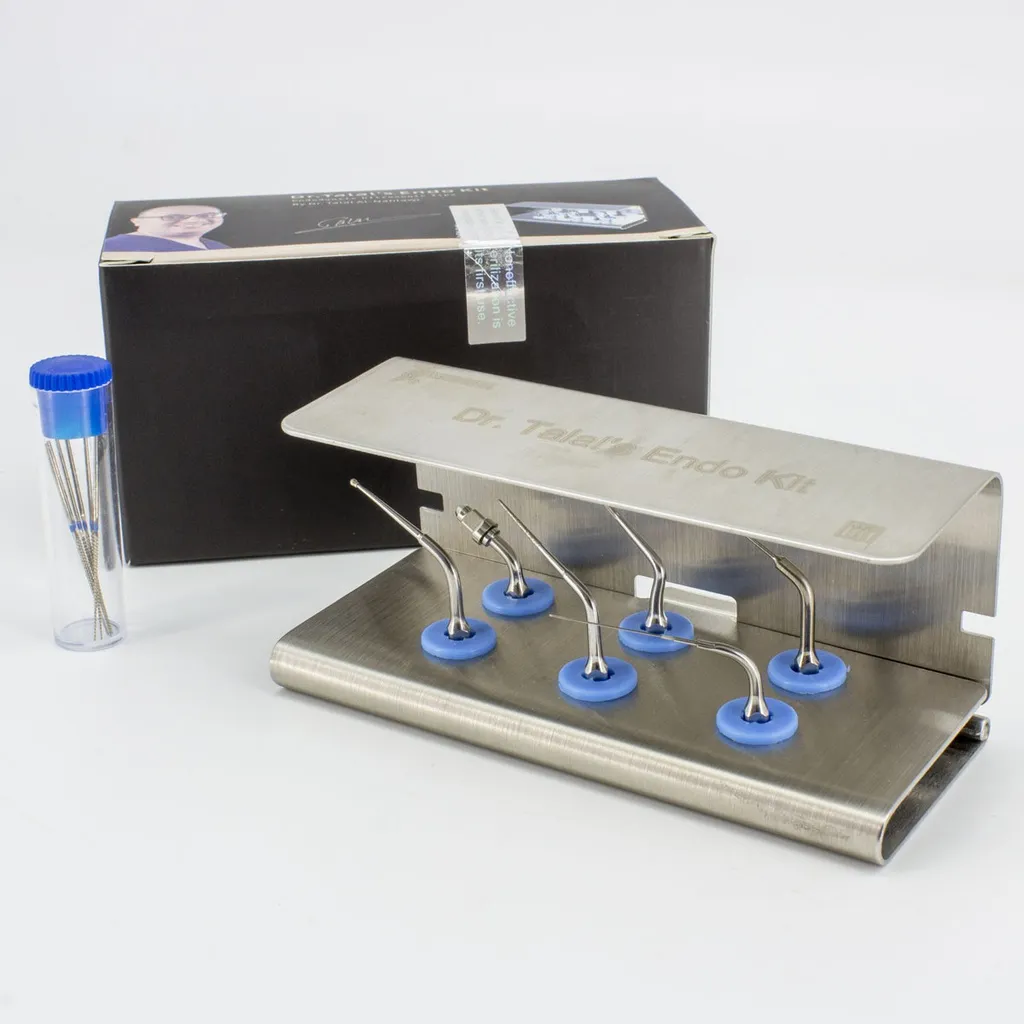

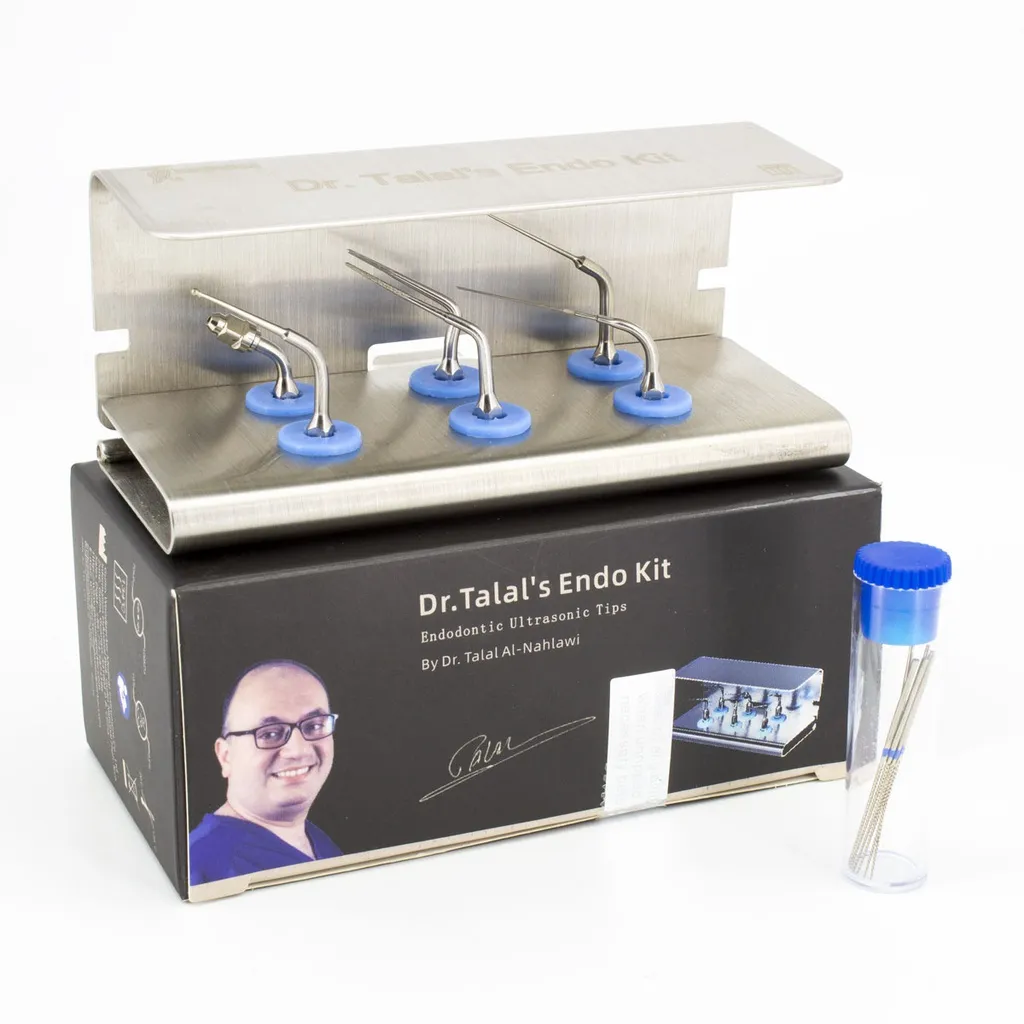

Package Contents

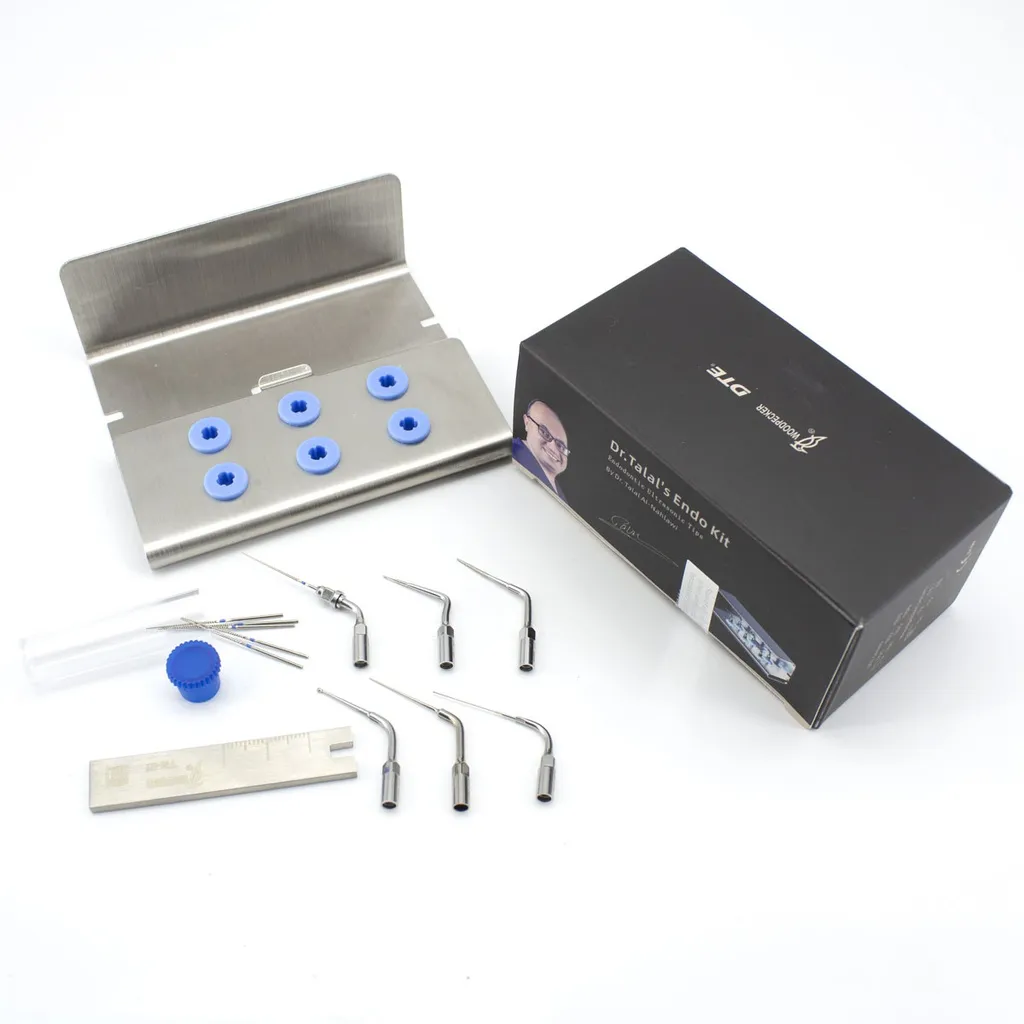

- ✅ DTE Series (Satelec Type):
6 Endo Tips (TD1 – TD6)
6 U-Files No. 30
Ruler Wrench for U-Files
- ✅ Woodpecker Series (EMS, UDS Type):
6 Endo Tips (T1 – T6)
6 U-Files No. 30
Ruler Wrench for U-Files
Step-by-Step Usage Guide
- Treatment Area Preparation
Ensure a clean and well-lit operating environment.
Set up all necessary instruments and equipment.
- Familiarization with the Kit
Review the included tools and accessories.
Identify the appropriate instrument for the planned procedure.
- Patient Preparation
Administer local anesthesia if necessary.
Isolate the treatment area using a rubber dam or alternative method.
- Selecting the Right Instrument
Choose the correct tip (T1 – T6 or TD1 – TD6) based on the procedure.
- Sterilization Before Use
Sterilize all instruments according to standard protocols.
Handle with sterile gloves to maintain asepsis.
- Performing the Procedure
Follow the corresponding T1 – T6 or TD1 – TD6 application instructions.
Use gentle pressure and controlled movements for safe and effective operation.
- Cleaning & Sterilization Post-Use
Rinse instruments thoroughly with water or disinfectant.
Follow standard cleaning and sterilization procedures.
- Post-Treatment Patient Care
Provide oral hygiene instructions and follow-up guidelines.
Dispose of single-use instruments properly and sterilize reusable ones.
